Calibration
Elastizell Corporation of America
Ensure Precise Results With Professional Calibration
Accurate measurements are vital for construction and building material applications. Elastizell offers thorough calibration services to make sure your preformed foam are accurate and perform optimally. With 55+ years of experience, we make sure your building materials meet industry standards and provide reliable results.
Contact us to discuss your calibration needs and maintain the accuracy your projects require. Following is an example of our calibration worksheet:
- Bullet text
- Bullet text
- Bullet text
- Bullet text
- Bullet text
- Bullet text
- Bullet text
- Bullet text
- Bullet text
- Bullet text
Title or Question
Describe the item or answer the question so that site visitors who are interested get more information. You can emphasize this text with bullets, italics or bold, and add links.Title or Question
Describe the item or answer the question so that site visitors who are interested get more information. You can emphasize this text with bullets, italics or bold, and add links.Title or Question
Describe the item or answer the question so that site visitors who are interested get more information. You can emphasize this text with bullets, italics or bold, and add links.
CP #1 Headline
CP #1 Body
CP #1 CTA Lead-in
Not valid with any other offers or promotions. Restrictions apply.
Must mention this coupon at the time of scheduling.
Gallery Heading H2
Reviews
Expert Workmanship
You Can Trust
We deliver precise building materials and reliable results that stand the test of time.
Call Us Today
Related Services

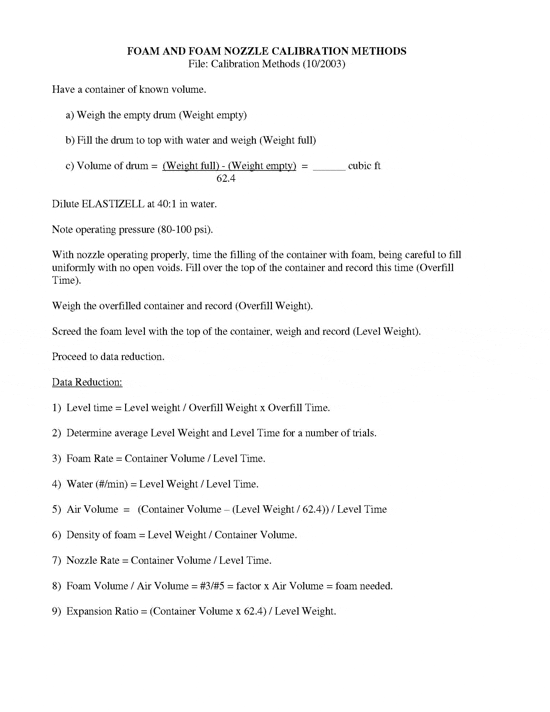

FOAM AND FOAM NOZZLE CALIBRATION METHODS
File: Calibration Methods (10/2003)
Have a container of known volume.
a) Weigh the empty drum (Weight empty)
b) Fill the drum to top with water and weigh (Weight full)
c) Volume of drum = (Weight full) - (Weight empty)/62.4 = _cubic ft.
Dilute ELASTIZELL at 40:1 in water.
Note operating pressure (80–100 psi).
With nozzle operating properly, time the filling of the container with foam, being careful to fill uniformly with no open voids. Fill over the top of the container and record this time (Overfill Time).
Weigh the overfilled container and record (Overfill Weight).
Screed the foam level with the top of the container, weigh and record (Level Weight).
Proceed to data reduction.
Data Reduction:
- Level time = Level Weight / Overfill Weight × Overfill Time
- Determine average Level Weight and Level Time for a number of trials
- Foam Rate = Container Volume / Level Time
- Water (#/min) = Level Weight / Level Time
- Air Volume = (Container Volume - (Level Weight / 62.4)) / Level Time
- Density of foam = Level Weight / Container Volume
- Nozzle Rate = Container Volume / Level Time
- Foam Volume / Air Volume = #3#5 = factor x Air Volume = foam needed
- Expansion Ratio = (Container Volume × 62.4) / Level Weight
Method for Elastizell Preformed Foam Calibration
See below for details regarding the methodology for calibrating our preformed foam.
- Bullet text
- Bullet text
- Bullet text
- Bullet text
- Bullet text
- Bullet text
- Bullet text
- Bullet text
- Bullet text
- Bullet text
Title or Question
Describe the item or answer the question so that site visitors who are interested get more information. You can emphasize this text with bullets, italics or bold, and add links.Title or Question
Describe the item or answer the question so that site visitors who are interested get more information. You can emphasize this text with bullets, italics or bold, and add links.Title or Question
Describe the item or answer the question so that site visitors who are interested get more information. You can emphasize this text with bullets, italics or bold, and add links.
CP #1 Headline
CP #1 Body
CP #1 CTA Lead-in
Not valid with any other offers or promotions. Restrictions apply.
Must mention this coupon at the time of scheduling.
Gallery Heading H2
Method for Elastizell Preformed Foam Calibration
See below for details regarding the methodology for calibrating our preformed foam.
Reviews
Expert Workmanship
You Can Trust
We deliver precise building materials and reliable results that stand the test of time.
Call Us Today
Related Services
| FOAM / NOZZLE CALIBRATION | PROJECT: | |||
|---|---|---|---|---|
| CHEMICAL | DATE | |||
| FOAM GUN | FILE | |||
| DILUTION | TANK | |||
| CONTAIN VOL | CF | PRESSURE | ||
| TRIAL NUMBER | 1 | 2 | 3 | AVERAGE |
| OVEFILL TIME (SEC) | ||||
| OVERFILL WT (#) | ||||
| LEVEL WEIGHT (#) | ||||
| LEVEL TIME (MIN) | ||||
| FOAM RATE (CFM) | ||||
| WATER (#/MIN) | ||||
| AIR VOLUME (CFM) | ||||
| DENSITY (PCP) | ||||
| NOZZLE RATE (GPM) | ||||
| (FOAM/AIR) VOL | ||||
| EXPANSION RATIO | ||||
| REMARKS: |
| FOAM / NOZZLE CALIBRATION | PROJECT: | |||
|---|---|---|---|---|
| CHEMICAL | DATE | |||
| FOAM GUN | FILE | |||
| DILUTION | TANK | |||
| CONTAIN VOL | CF | PRESSURE |
| TRIAL NUMBER | 1 | 2 | 3 | AVERAGE |
| OVEFILL TIME (SEC) |
| OVERFILL WT (#) |
| LEVEL TIME (MIN) |
| FOAM RATE (CFM) |
| WATER (#/MIN) |
| AIR VOLUME (CFM) |
| DENSITY (PCP) |
| NOZZLE RATE (GPM) |
| (FOAM/AIR) VOL |
| EXPANSION RATIO |
| REMARKS: |
